Form Exploration: Book Table

Form Exploration: Geoform Book Table

A project working with composition in 3D space and understanding different tools in the wood shop. With this project we worked with the table saw, chop saw, band saw, router, joiner, and planer.

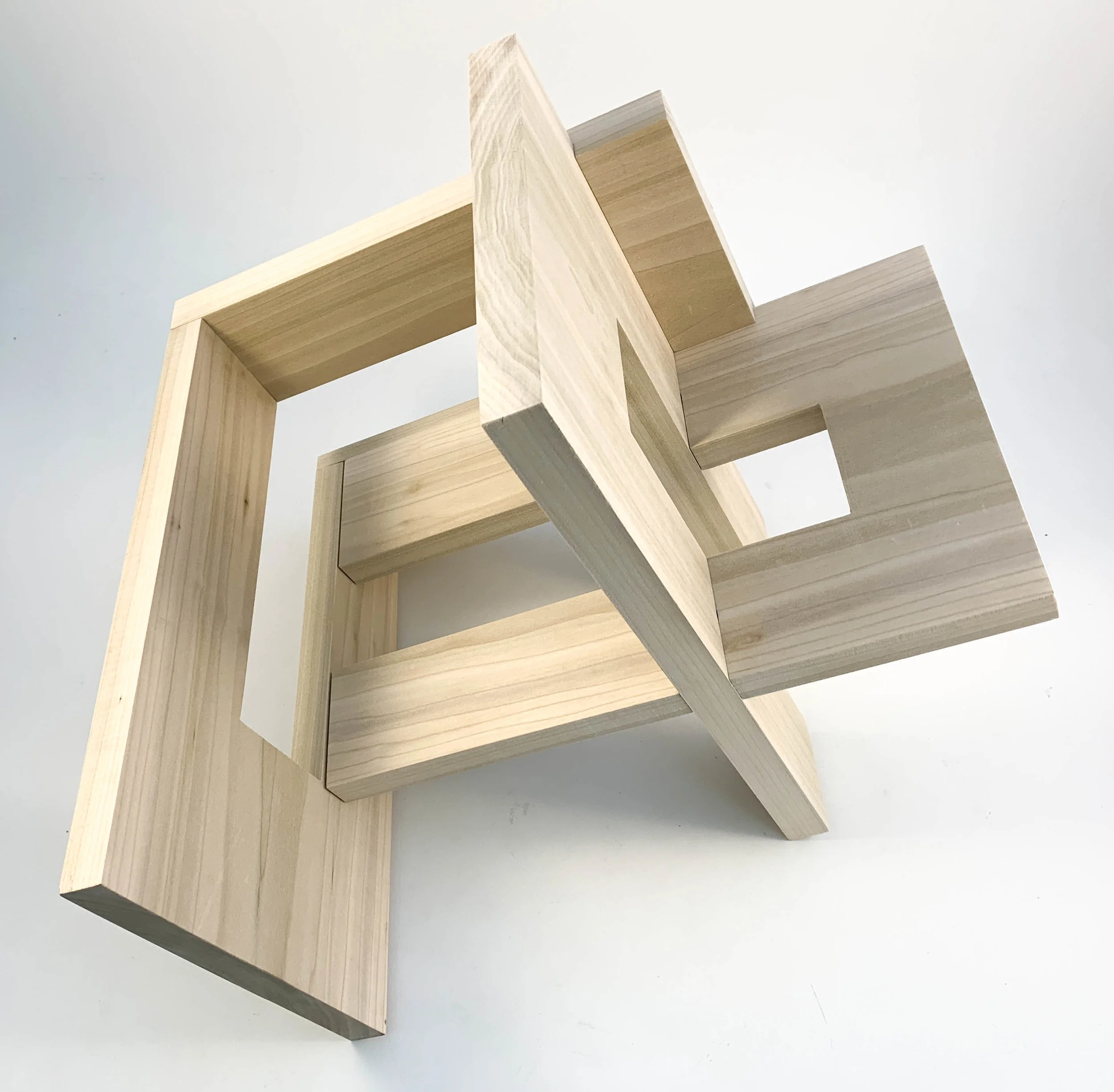

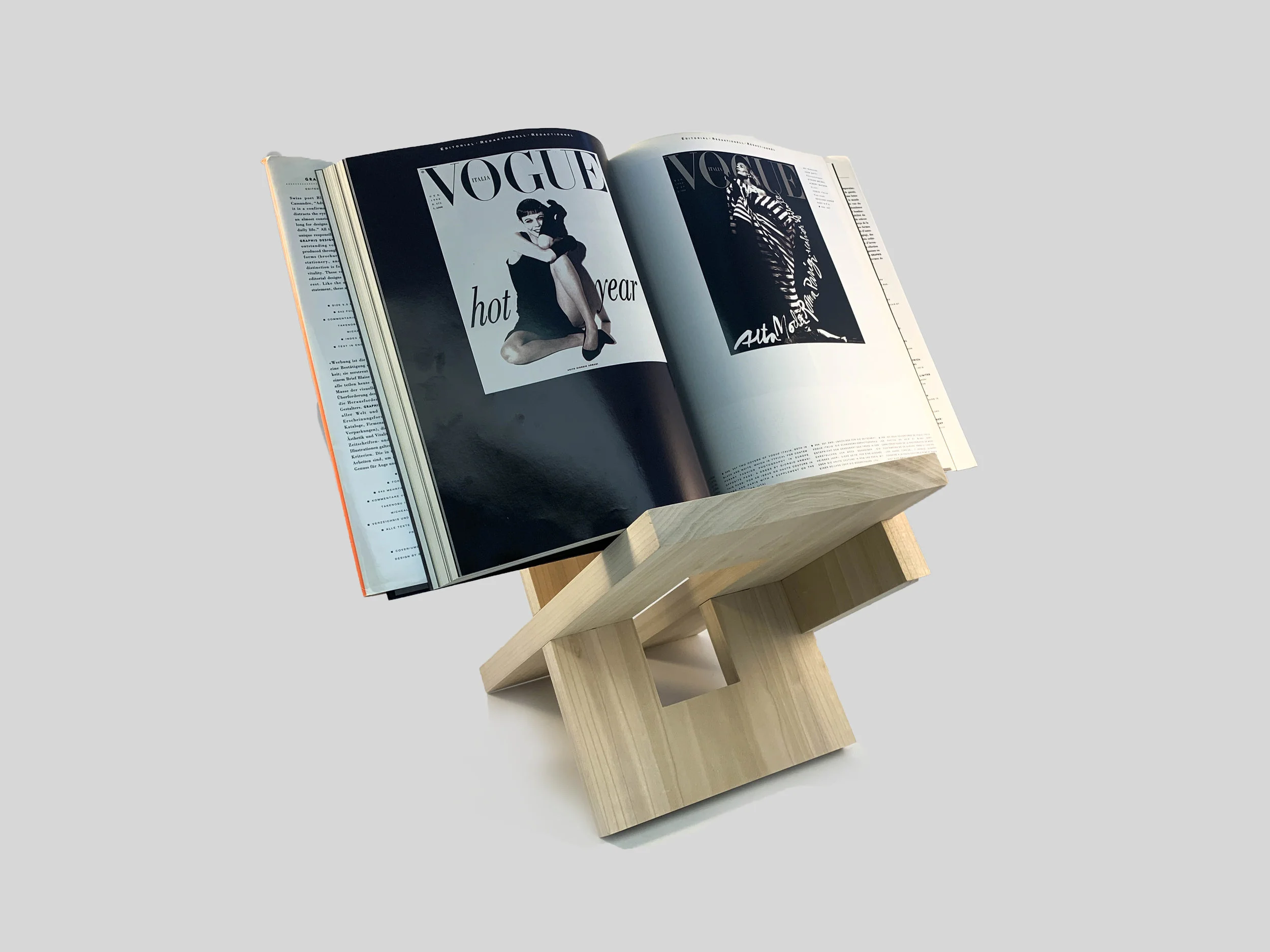

Final Geoform

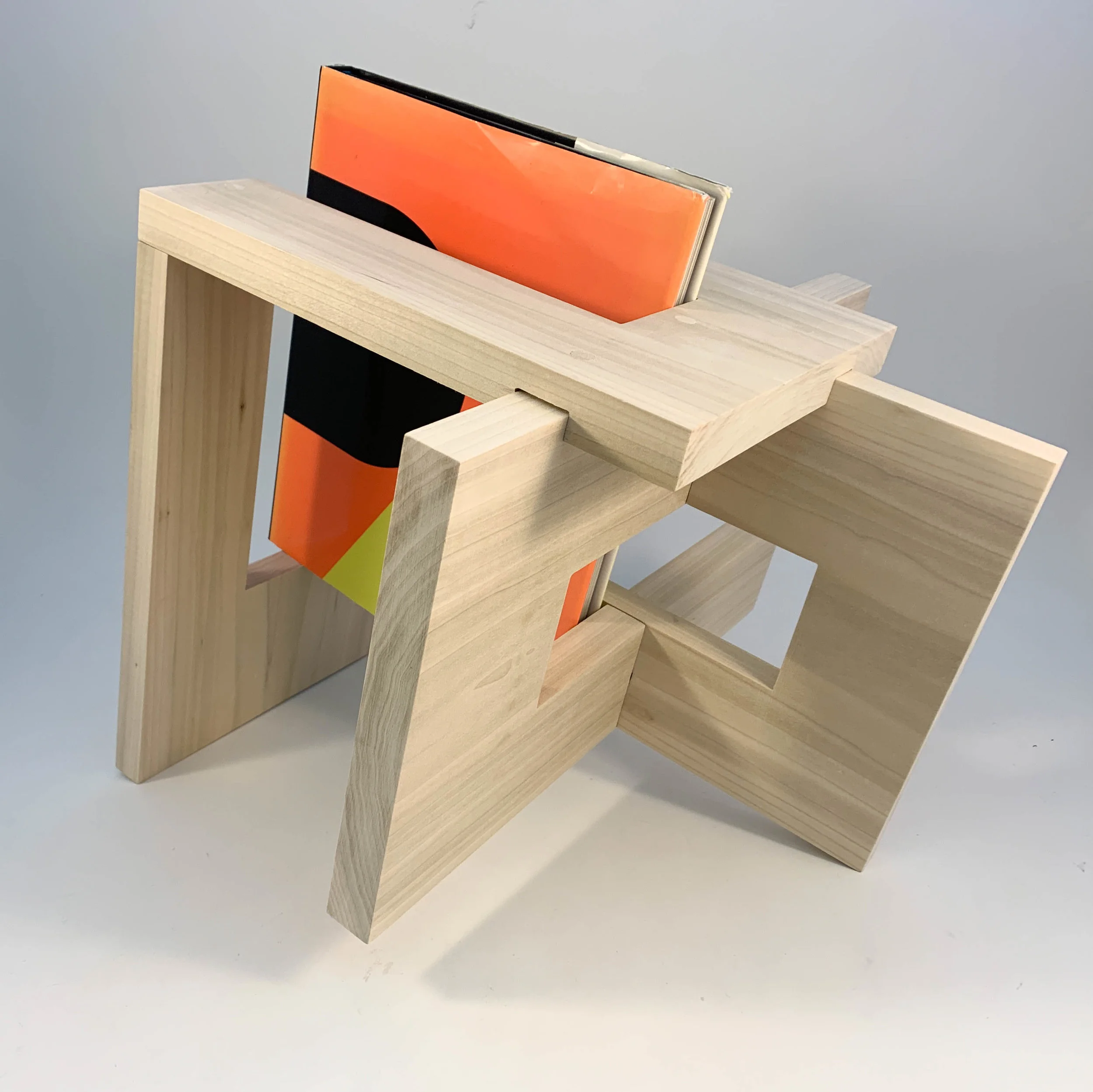

The final product is made from poplar and sixteen 3/4 in. self-sinking wood screws. The final product is designed for a specific book of our choosing. I decided to choose Grafis Design– a book describing the history of Swiss graphic design.


IMG_5555 2.jpg
IMG_5602 2.jpg
IMG_5584 2.jpg
IMG_5581 2.jpg

Book table can be used in different orientations for different purposes: storage and display. This was intended for the different uses of the display book.



Process

Quarter-scale Explorations

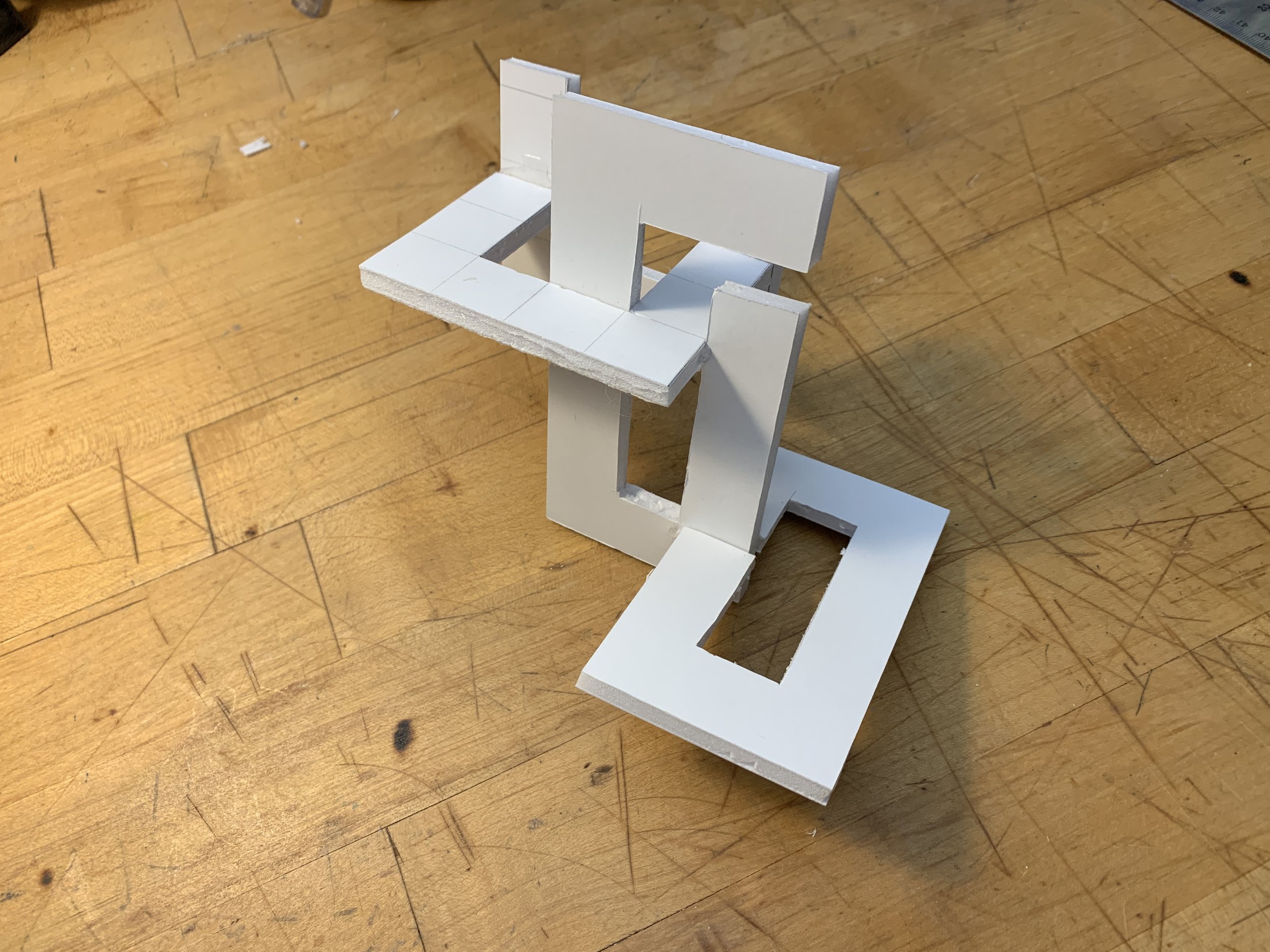

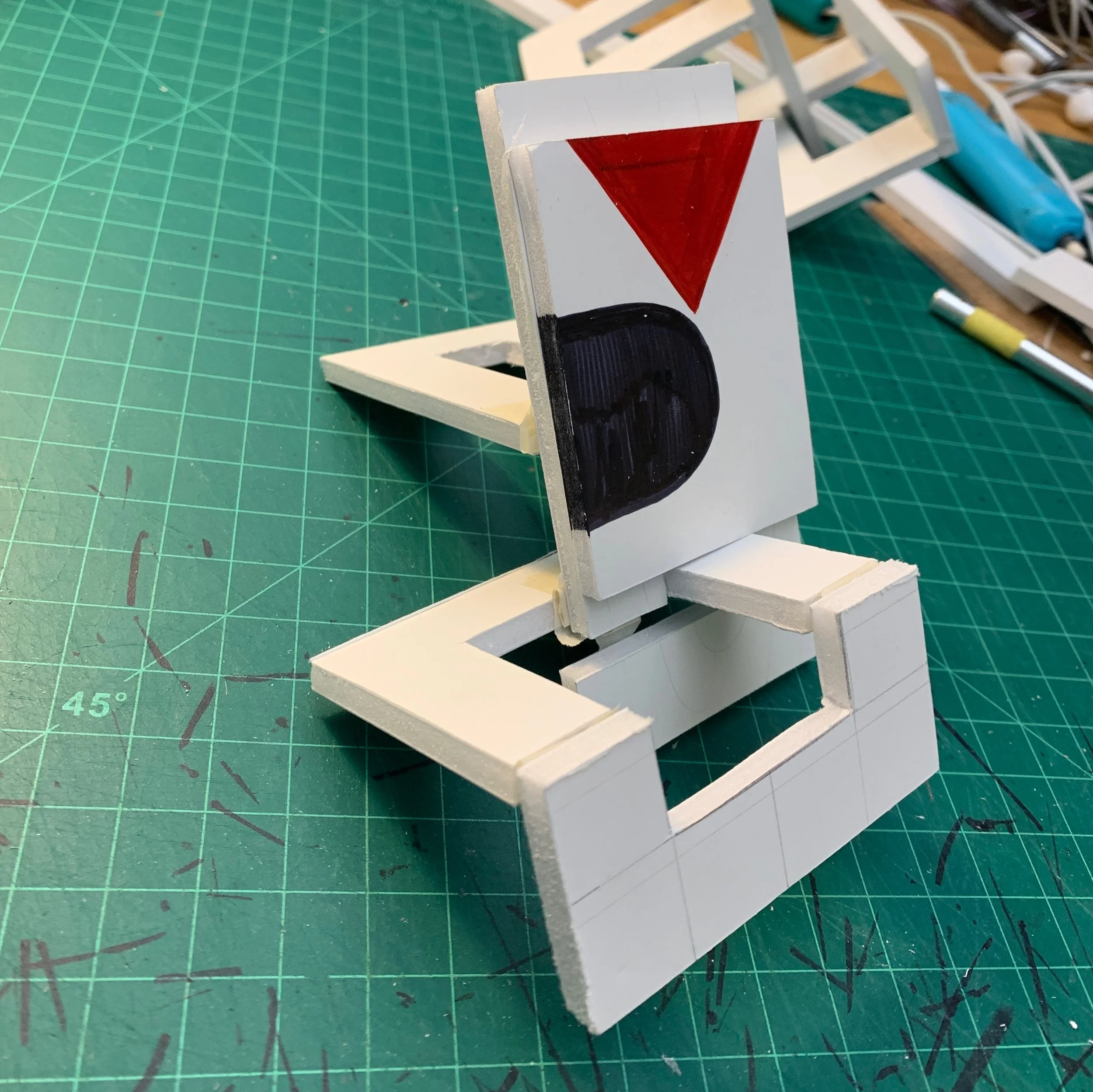

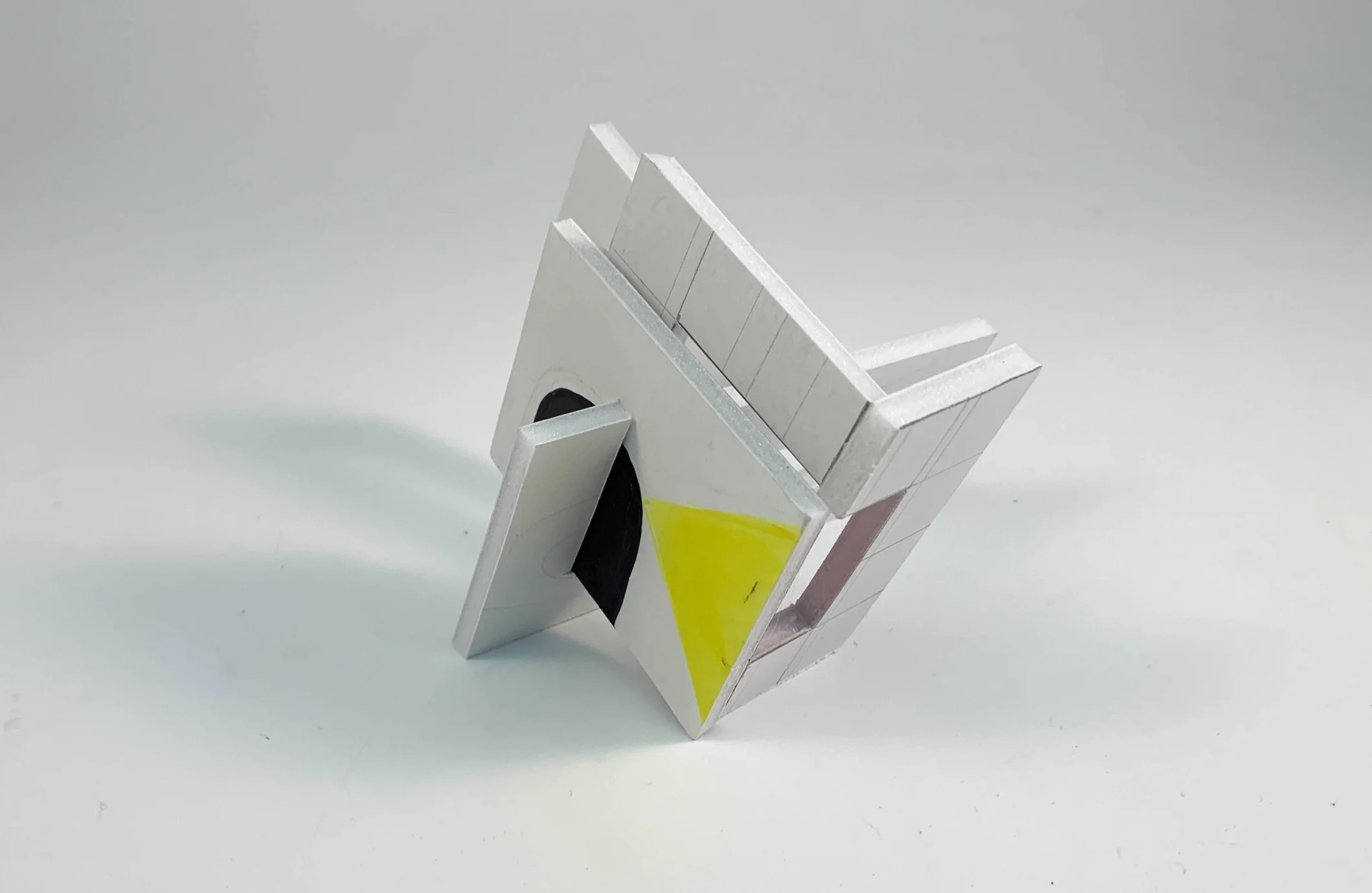

Explored a variety of different wood pieces and orientations before working at larger scale. Quarter-scale models are all made with 1/8 inch foam core

IMG_6115 2.jpg
IMG_6117 2.jpg

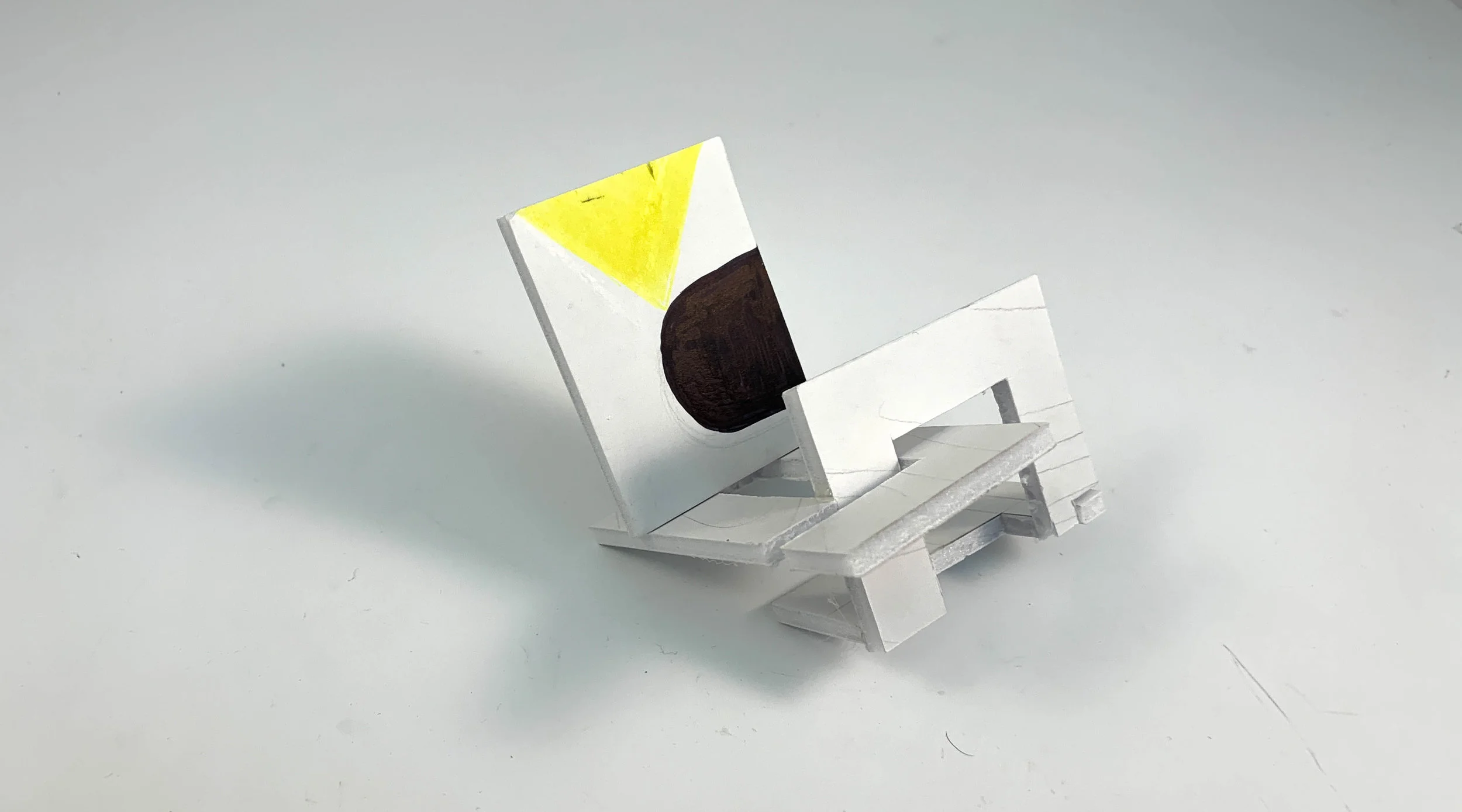

IMG_4078 2.jpg


Full-scale models

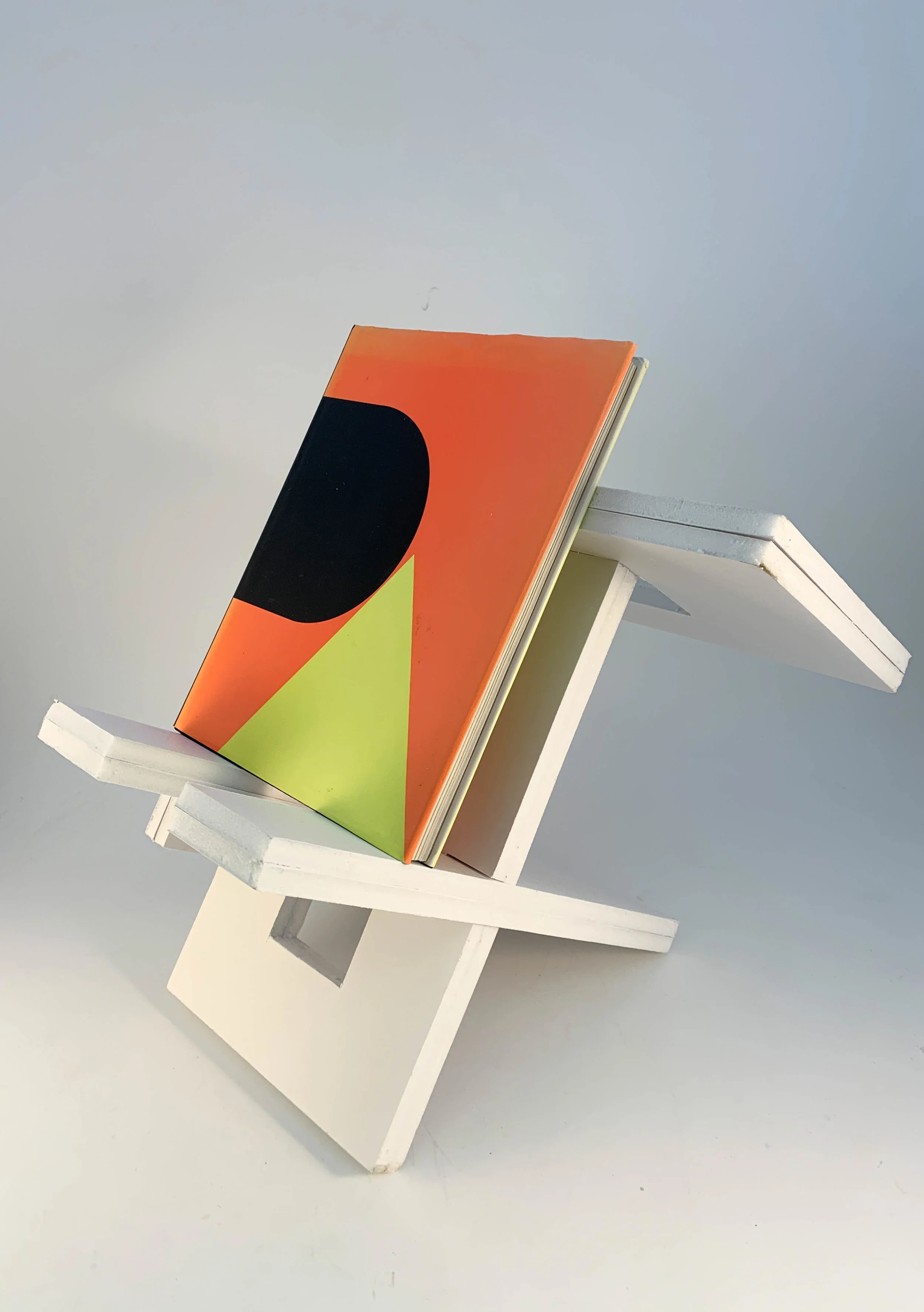

Made two full scale models testing out full-scale dimensions in relation to the book.

IMG_4556 2.jpg
Full scale model with quarter scale final model

Full scale model with quarter scale final model



Final Wood Model Construction

After figuring out dimensions and placement of all wood pieces, I began the fabrication of the wood model

Four pieces of Geoform book table laid out on the board

Four pieces of Geoform book table laid out on the board

Four cut pieces after sectioning off with chop saw

Four cut pieces after sectioning off with chop saw

Sanding sanding and more sanding

Sanding sanding and more sanding

Assembled geoform with wooden plugs setting in wood glue before chiseling

Assembled geoform with wooden plugs setting in wood glue before chiseling
