FIRE ALARM FOR CARNEGIE SCIENCE CENTER

Final project for Products II Studio. Explored the boundaries of a fire alarm design for a science museum and fabricated a gray model with interaction capabilities and created multiple renderings of what the alarm would look like in its given environment. An exploration on the communication of form semantics to interaction. Considered context of the alarm within the museum and the situation of emergency.

Gray form is made from 3D printed material, laser cut acrylic rail system, and three double reed switches as well as a series of electronics.

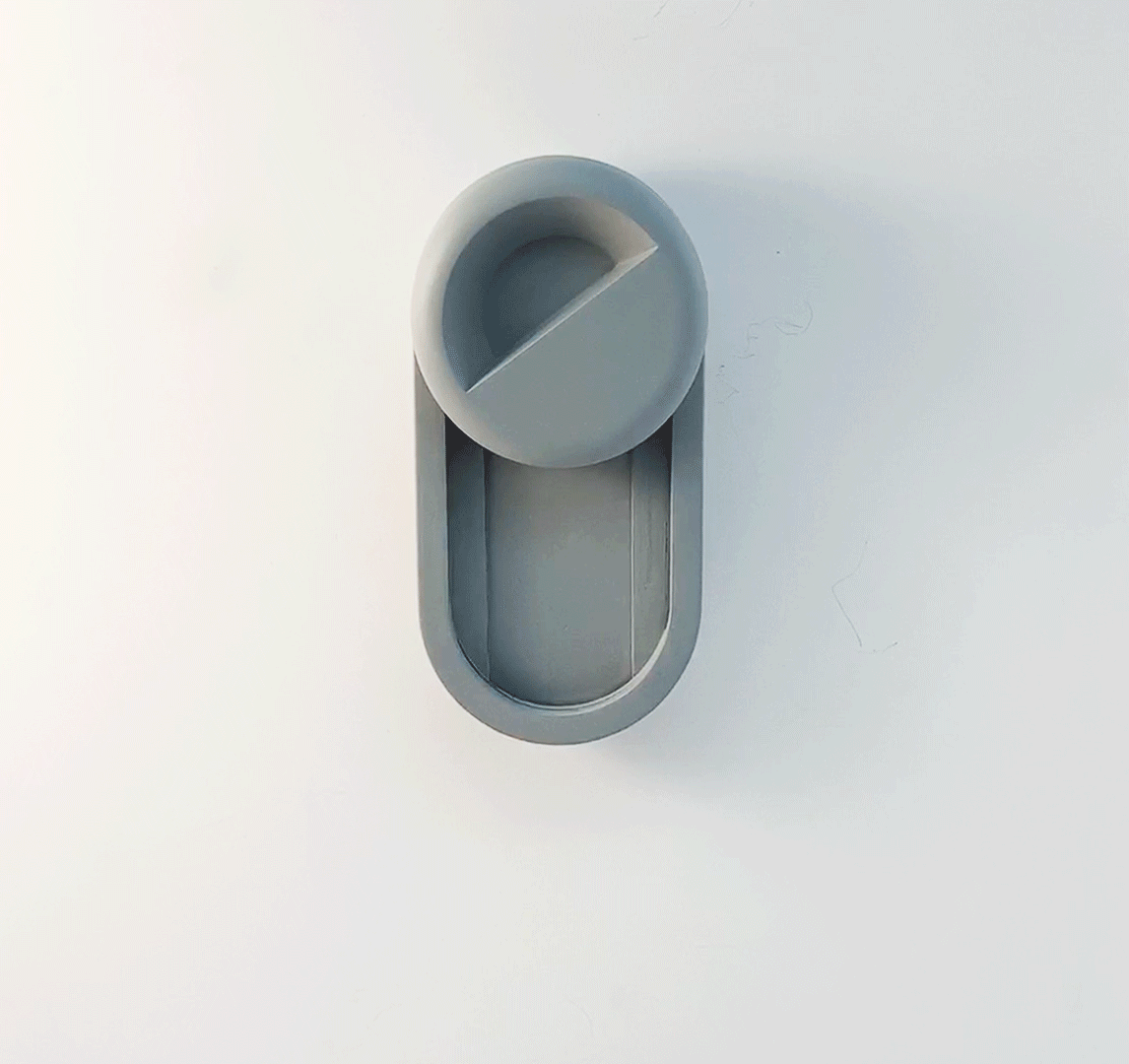

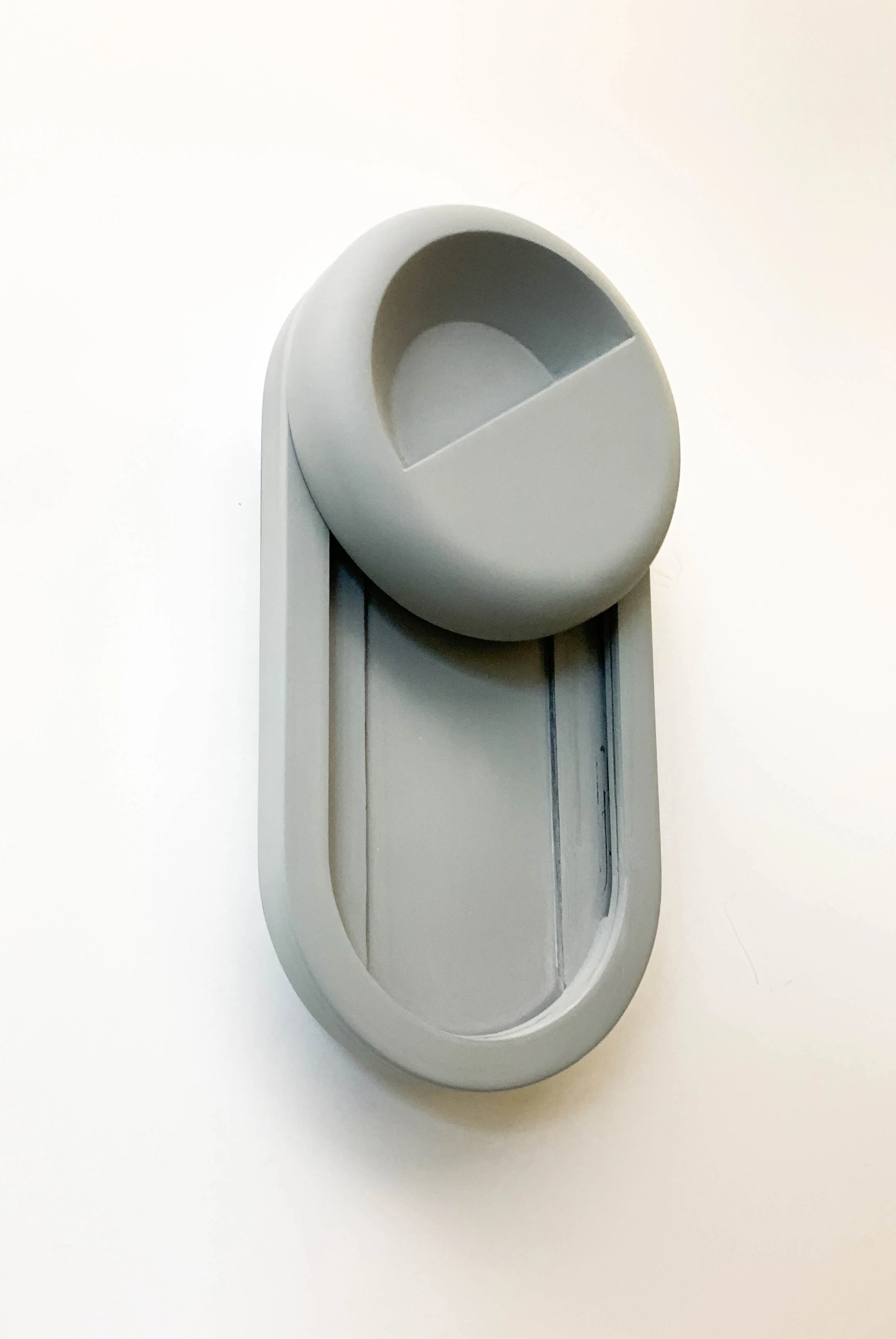

Final grey model

Final grey model

Final Renderings of Fire Alarm

Final Renderings of Fire Alarm

Interaction with fire alarm with lighting interaction

Interaction with fire alarm with lighting interaction

Interaction with Fire Alarm: Initial state handle sits at an angle and completed state is parallel

Interaction with Fire Alarm: Initial state handle sits at an angle and completed state is parallel



Exploded View of Parts of Fire Alarm

Exploded View of Parts of Fire Alarm

Listed pieces of the grey model

Listed pieces of the grey model

Storyboard for Fire Alarm for Science Center

Storyboard for Fire Alarm for Science Center

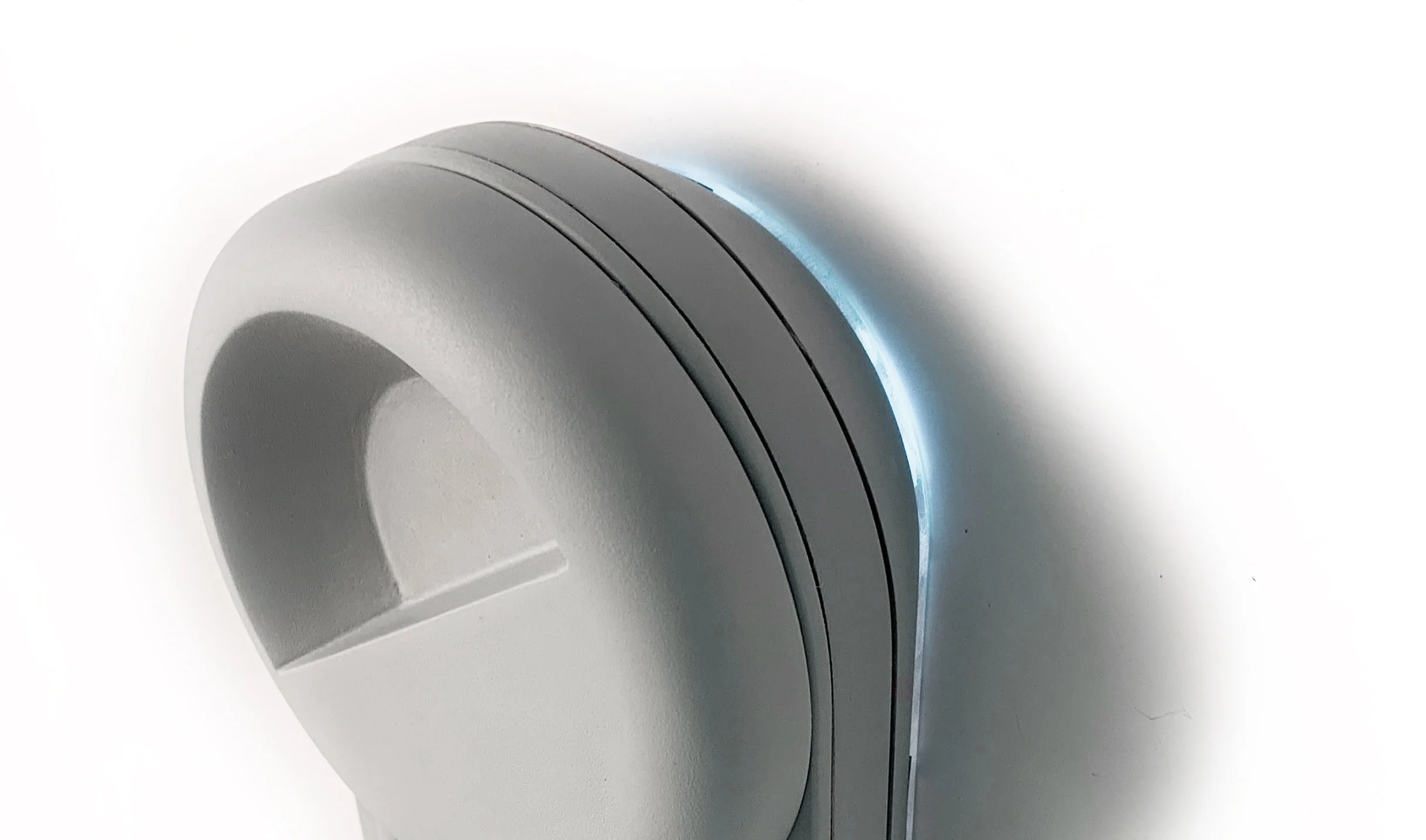

Interaction affects lighting of alarm

Interaction affects lighting of alarm

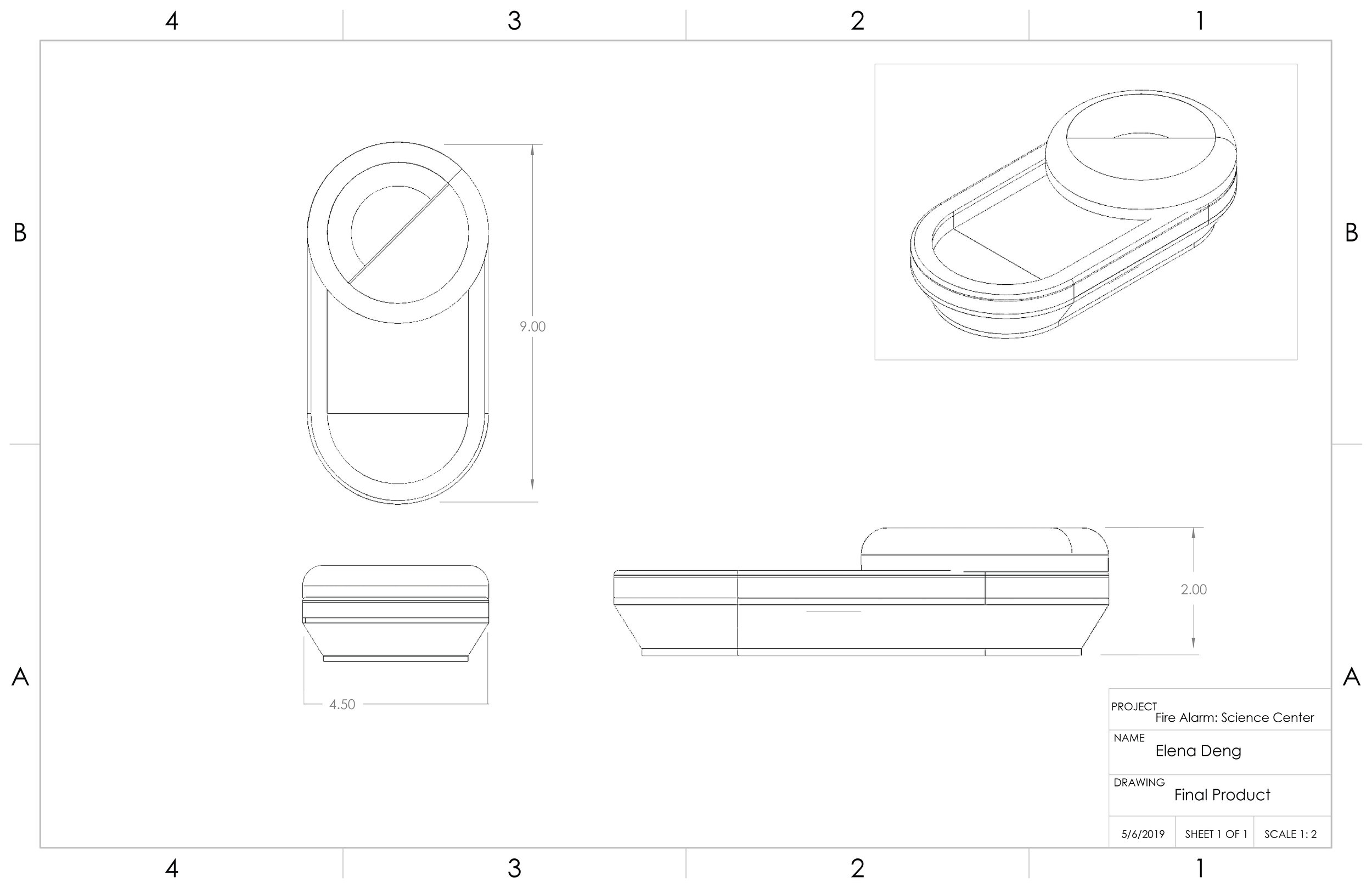

Dimension drawings done on SolidWorks

Dimension drawings done on SolidWorks



Fire Alarm in context to the Science Center

Fire Alarm in context to the Science Center

Initial renderings
